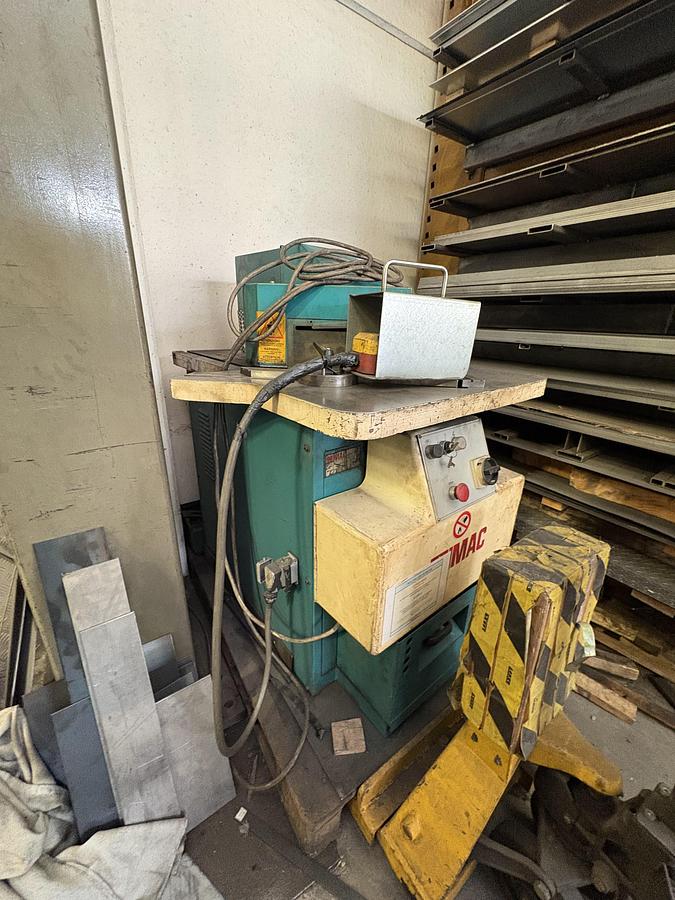

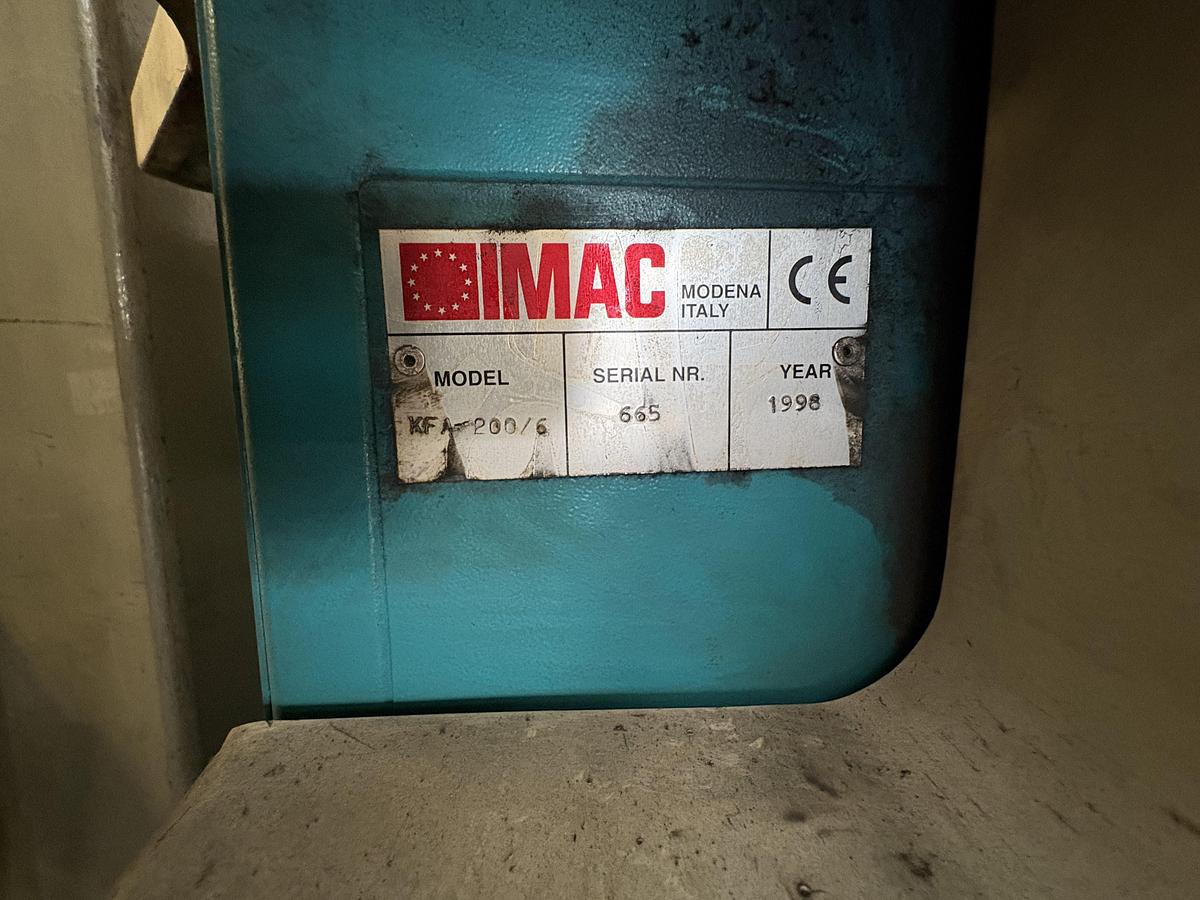

1998 Imac KFA 200/6

Main features of shears: Punching station

• Hydraulic operation via 2 cylinders and 3 guides.
• High rigidity of the punch group.
• Possibility to undercut without removing the punch from the punch press.
• Automatic adjustment of blade gap from 1 mm to 6 mm optional.
• Rigid and spacious work table.
• Millimetric steel? Wait. The text: Aste millimetriche in ottone incise a triplice funzione.
• 9-reference hole squads every 15° with graduated scale.
• End-cap blade guard for cuts exceeding blade length.
• 5 T slots, 4 of which with millimetric rods.
• Electronic stroke regulator with digital readout.
• Single-shot or impulse operation.
• Internal stop for bands up to 200 mm.
• Polycarbonate protection in the cutting area.
• Two chip/part scrap collection cassette included as standard.

Main features of notchers: Punching station

• Quick-change tool holder connection type Trumf®, Rainer® or Fim®.
• 250 mm swan neck.
• 12.5 Ton punch press.
• Device to reduce descent speed.
• Possibility to perform small bends and deformations.
• Millimetric rods in brass for reading the 2 axes.
